Setting up the fax function using analog fax

Configure your printer to send and receive analog fax messages.
  • A fax card must be installed for the printer to use analog fax.
  • Some connection methods are applicable only in some countries or regions.
  • If the fax function is enabled and not fully set up, then the indicator light may blink red.
  • If you do not have a TCP/IP environment, then use the control panel to set up fax.

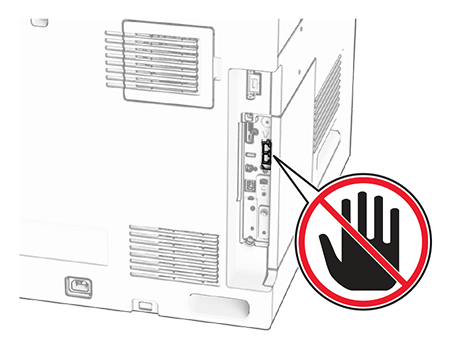

To avoid loss of data or printer malfunction, do not touch cables or the printer in the area shown while actively sending or receiving a fax.

Using the control panel

  1. From the control panel, navigate to
    Settings
    Fax
    Fax Setup
    General Fax Settings
    .
  2. Configure the settings.

Using the Embedded Web Server

  1. Open a web browser, and then type the printer IP address in the address field.
    • You can find the IP address at the top of the printer display.
    • Make sure that the printer and computer are connected to the same network.
  2. Click
    Settings
    Fax
    Fax Setup
    General Fax Settings
    .
  3. Configure the settings.
  4. Apply the changes.
