Using the control panel

Use the features of the control panel to navigate easily through the printer functions and settings.

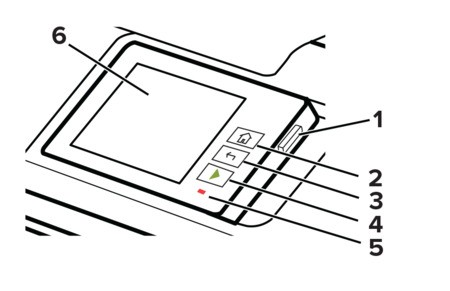

	Control panel part	Function
1	Power button	Turn on or turn off the printer. To turn off the printer, press and hold the power button for five seconds. Set the printer to Sleep mode. Wake the printer from Sleep or Hibernate mode.
2	Home button	Go to the home screen.
3	Back button	Return to the previous screen.
4	Start button	Start a job.
5	Indicator light	Check the status of the printer.
6	Display	View the printer messages and supply status. Set up and operate the printer.

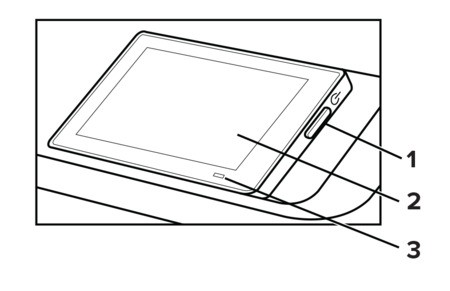

	Control panel part	Function
1	Power button	Turn on or turn off the printer. To turn off the printer, press and hold the power button for five seconds. Set the printer to Sleep mode. Wake the printer from Sleep or Hibernate mode.
2	Display	View the printer messages and supply status. Set up and operate the printer.
3	Indicator light	Check the status of the printer.
