Replacing the fuser

Learn how to remove the fuser when you are installing a new one.
  1. Turn off the printer, and then unplug the power cord from the electrical outlet.

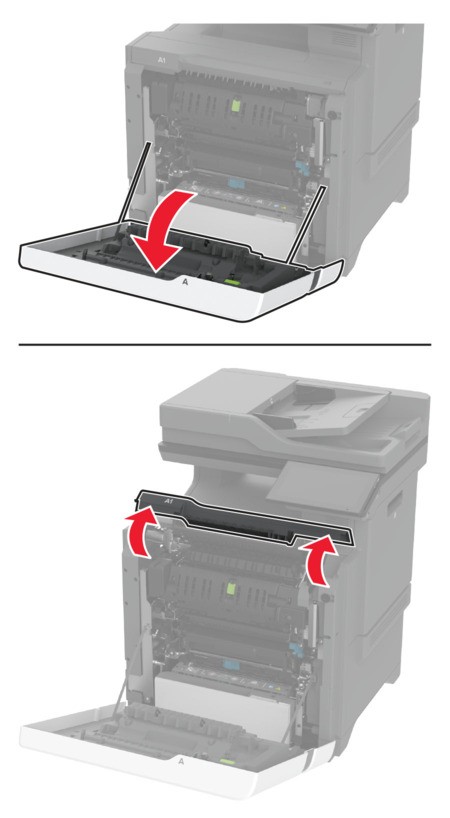

  2. Open door A, and then open door A1.
    The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it.

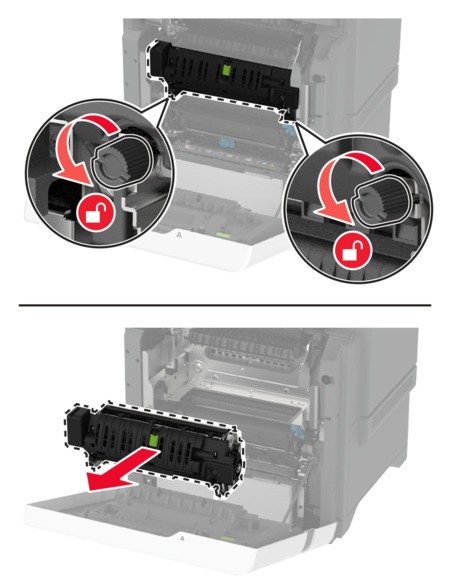

  3. Remove the used fuser.
  4. Unpack the new fuser.

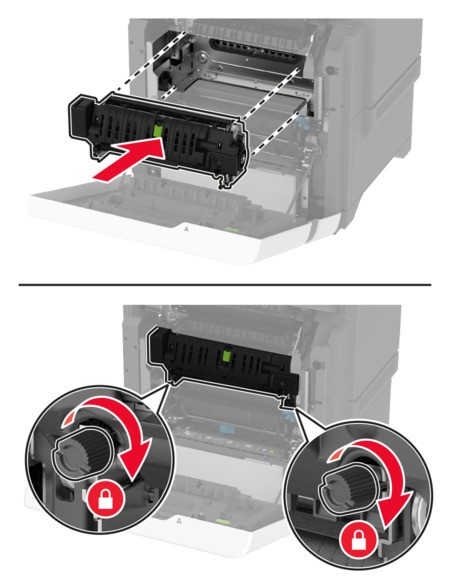

  5. Insert the new fuser.
  6. Close door A1, and then close door A.
  7. Connect the power cord to the electrical outlet, and then turn on the printer.
    To avoid the risk of fire or electrical shock, connect the power cord to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible.
  8. Reset the fuser maintenance counter.
    For more information, see Resetting the maintenance counter.
