Paper jam in door A

Remove paper that is stuck in door A to continue printing.
  1. Open door A.
    The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it.

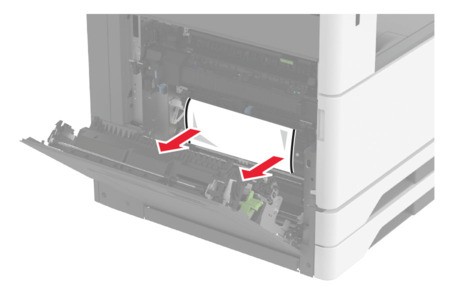

  2. Remove the jammed paper.
    Make sure that all paper fragments are removed.

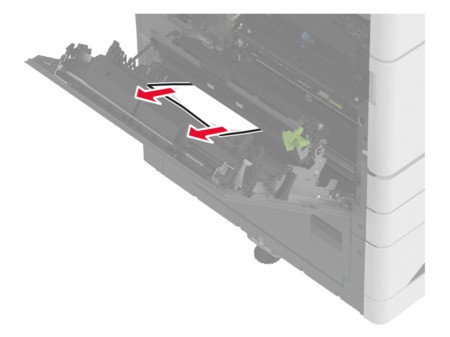

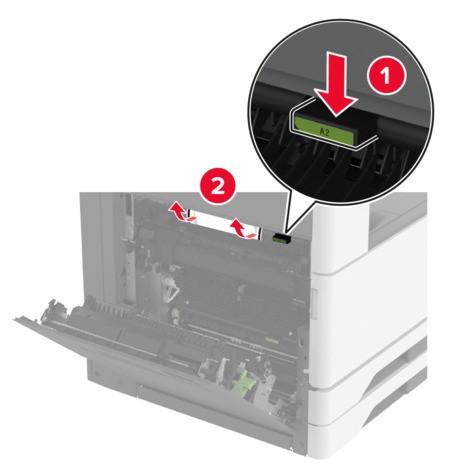

  3. Open door A2, and then remove the jammed paper.
    Make sure that all paper fragments are removed.

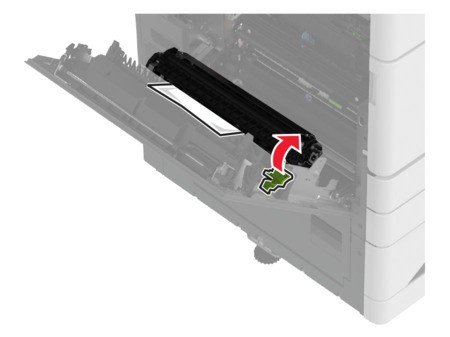

  4. Lift door A3.
  5. Remove the jammed paper.
    Make sure that all paper fragments are removed.
  6. Close door A2, and then close door A.
