Lexmark MB2236adw MFP

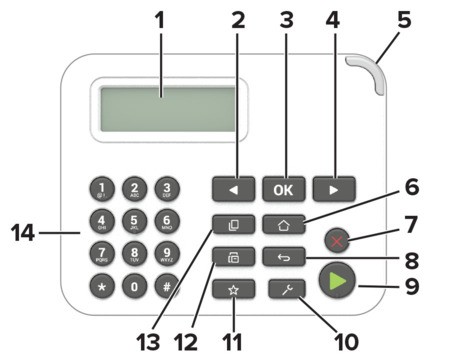

	Control panel part	Function
1	Display	View printer messages and supply status. Set up and operate the printer.
2	Left arrow button	Scroll through menus or move between screens and menu options. Decrease the numeric value of a setting.
3	Select button	Select a menu option. Save the changes in a setting.
4	Right arrow button	Scroll through menus or move between screens and menu options. Increase the numeric value of a setting.
5	Indicator light	Check the status of the printer.
6	Home button	Go to the home screen.
7	Stop or Cancel button	Stop the current job.
8	Back button	Return to the previous screen.
9	Start button	Start a job, depending on which mode is selected.
10	Menu button	Access the printer menus.
11	Shortcuts button	Access shortcuts to frequently used functions with previously saved settings.
12	Fax button	Enter Fax mode.
13	Copy button	Enter Copy mode.
14	Numeric keypad	Enter numbers or symbols in an input field.

1

Display

View printer messages and supply status.

Set up and operate the printer.

2

Left arrow button

Scroll through menus or move between screens and menu options.

Decrease the numeric value of a setting.

3

Select button

Select a menu option.

Save the changes in a setting.

4

Right arrow button

Scroll through menus or move between screens and menu options.

Increase the numeric value of a setting.

5

Indicator light

Check the status of the printer.

6

Home button

Go to the home screen.

7

Stop or Cancel button

Stop the current job.

8

Back button

Return to the previous screen.

9

Start button

Start a job, depending on which mode is selected.

10

Menu button

Access the printer menus.

11

Shortcuts button

Access shortcuts to frequently used functions with previously saved settings.

12

Fax button

Enter Fax mode.

13

Copy button

Enter Copy mode.

14

Numeric keypad

Enter numbers or symbols in an input field.
