Paper jam in the front door

Remove paper that is stuck behind the front door to continue printing.
  1. Open the front door.
    To prevent damage from electrostatic discharge, touch any exposed metal frame of the printer before accessing or touching interior areas of the printer.

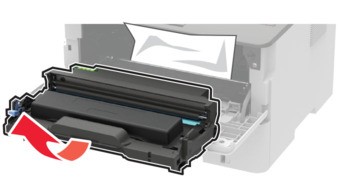

  2. Remove the imaging unit.
    Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems.

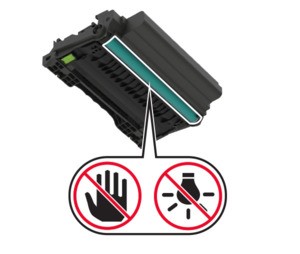

    Do not touch the photoconductor drum. Doing so may affect the quality of future print jobs.

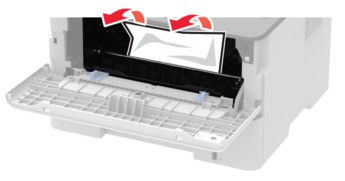

  3. Remove the jammed paper.
    The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it.
    Make sure that all paper fragments are removed.
  4. Insert the imaging unit.
  5. Close the door.
