Replacing the toner cartridge

Install a new toner cartridge when you continue to see faded prints.

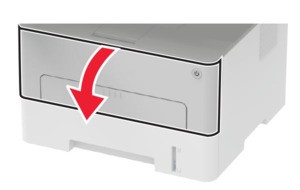

  1. Open the front door.
    To prevent damage from electrostatic discharge, touch any exposed metal frame of the printer before accessing or touching interior areas of the printer.

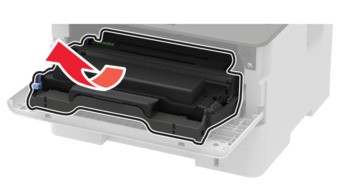

  2. Remove the imaging unit.

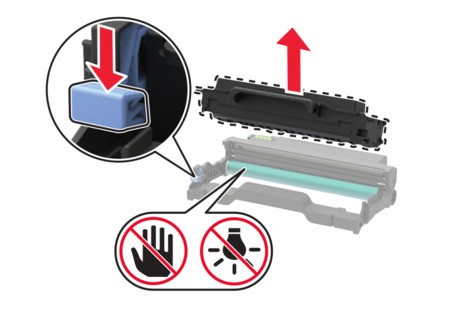

  3. Remove the used toner cartridge from the imaging unit.
  4. Unpack the new toner cartridge.

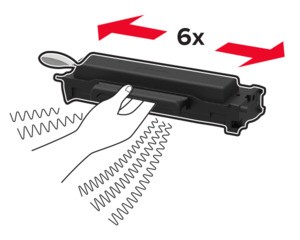

  5. Shake the toner cartridge to redistribute the toner.

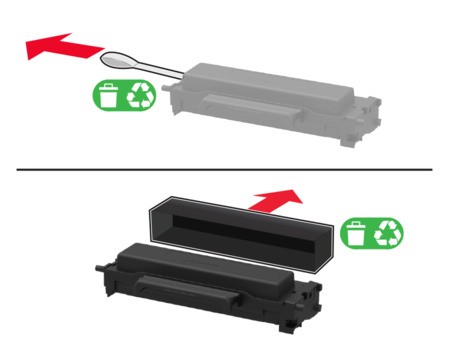

  6. Remove the seal, and then remove the cover.

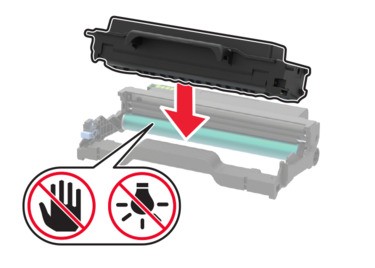

  7. Insert the new toner cartridge into the imaging unit.

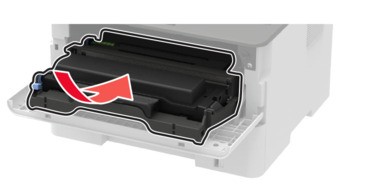

  8. Insert the imaging unit.
  9. Close the door.
