Replacing the imaging unit

Avoid printing delays. Install a new imaging unit when the printer prompts you to replace it.
  1. Open door A.

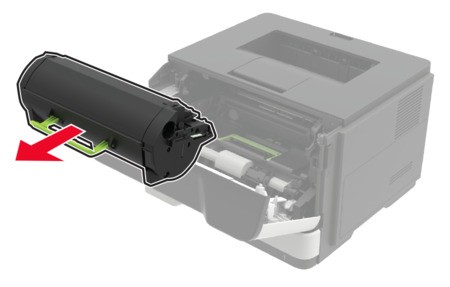

  2. Remove the toner cartridge.
  3. Remove the used imaging unit.

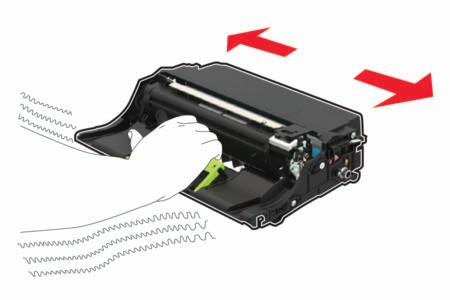

  4. Unpack the new imaging unit, and then shake it three times to redistribute the toner.
    Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems.

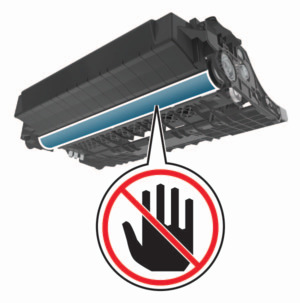

    Do not touch the photoconductor drum. Doing so may affect the quality of future print jobs.
  5. Insert the new imaging unit.
    Use the arrows inside the printer as guides.

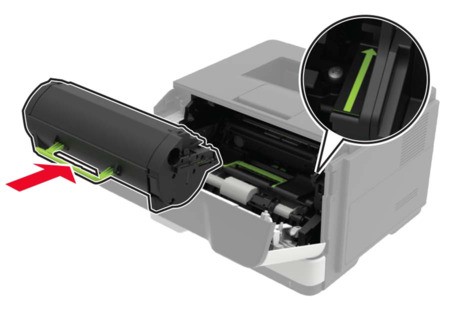

  6. Insert the toner cartridge.
    Use the arrows inside the printer as guides.
  7. Close door A.
