Attaching cables
Start configuring your printer by connecting the cables to the correct ports and socket.
To avoid the risk of fire or electrical shock, connect the power cord to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible.
To avoid the risk of fire or electrical shock, use only the power cord provided with this product or the manufacturer's authorized replacement.
To avoid the risk of electrical shock, do not set up this product or make any electrical or cabling connections, such as the power cord, fax feature, or telephone, during a lightning storm.
To avoid loss of data or printer malfunction, do not touch the USB cable, any wireless network adapter, or the printer in the areas shown while actively printing.

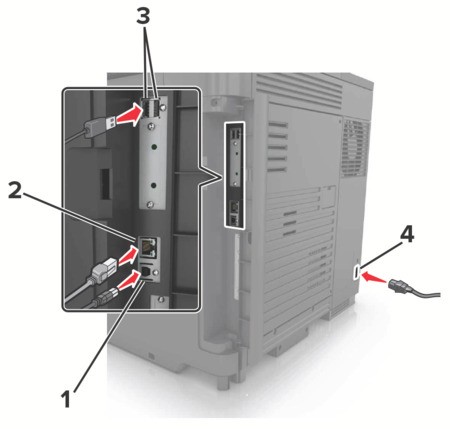

Use the | To | |
|---|---|---|
1 | USB printer port | Connect the printer to a computer. |
2 | Ethernet port | Connect the printer to an Ethernet network. |
3 | USB ports | Attach a keyboard or any compatible options. |
4 | Power cord socket | Connect the printer to a properly grounded electrical outlet. |
