Replacing the transfer belt

Change the transfer belt when you start seeing low‑quality images on your prints.
  1. Turn off the printer.
  2. Open door A.
  3. Remove the waste toner bottle.
  4. Open door A1.

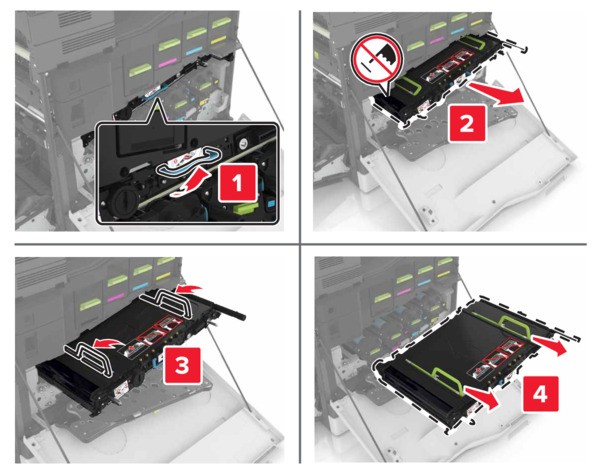

  5. Remove the transfer belt.
  6. Unpack the new transfer belt, and then remove the packing material.
    Do not expose the transfer belt to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems.

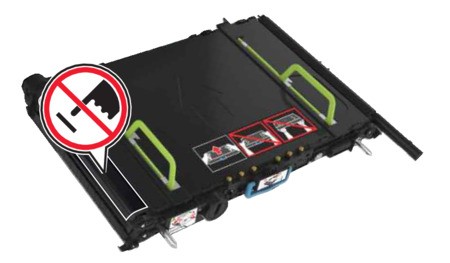

    Do not touch the transfer belt. Doing so may affect the print quality of future print jobs.

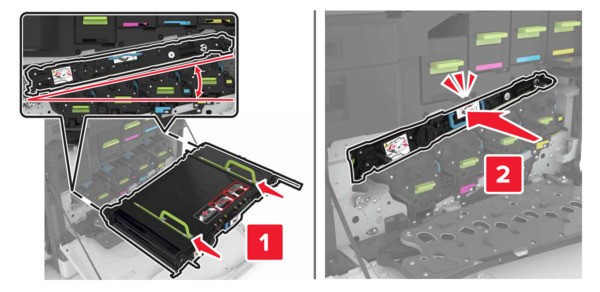

  7. Insert the new transfer belt until it
    clicks
     into place.

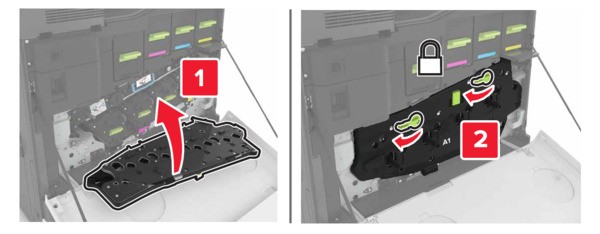

  8. Close door A1.
  9. Insert the waste toner bottle.
  10. Close door A.
  11. Turn on the printer.
