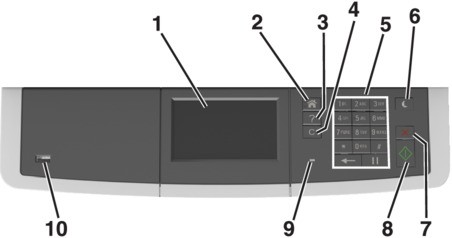

Using the printer control panel

	Use the	To
1	Display	View the printer status and messages. Set up and operate the printer.
2	Home button	Go to the home screen.
3	Help button	Go to the Help menus.
4	Clear all / Reset button	Reset the default settings of a function, such as printing, copying, or e-mailing.
5	Keypad	Enter numbers, letters, or symbols.
6	Sleep button	Enable Sleep mode or Hibernate mode.
7	Cancel button	Cancel all printer activity.
8	Start button	Start a job, depending on which mode is selected.
9	Indicator light	Check the status of the printer.
10	USB port	Connect a flash drive to the printer. Only the front USB port supports flash drives.

1

Display

View the printer status and messages.

Set up and operate the printer.

2

Home button

Go to the home screen.

3

Help button

Go to the Help menus.

4

Clear all / Reset button

Reset the default settings of a function, such as printing, copying, or e-mailing.

5

Keypad

Enter numbers, letters, or symbols.

6

Sleep button

Enable Sleep mode or Hibernate mode.

7

Cancel button

Cancel all printer activity.

8

Start button

Start a job, depending on which mode is selected.

9

Indicator light

Check the status of the printer.

10

USB port

Connect a flash drive to the printer.

Only the front USB port supports flash drives.
