Printer configurations
To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

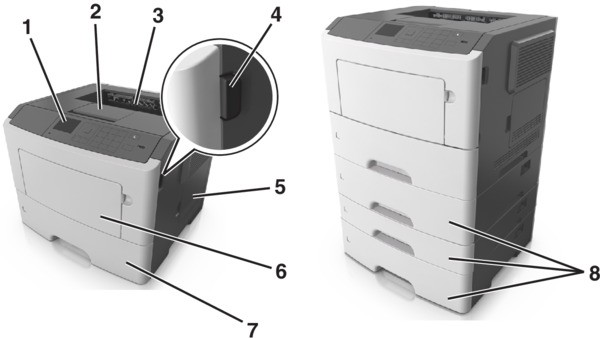

MS510dn and MS517dn
1 | Control panel |
2 | Paper stop |
3 | Standard bin |
4 | Front door release button |
5 | Controller board access door |
6 | 100‑sheet multipurpose feeder |
7 | Standard 250‑sheet tray |
8 | Optional 250‑ or 550‑sheet trays |
MS610dn and MS617dn
1 | Printer control panel |
2 | Paper stop |
3 | Standard bin |
4 | Front door release button |
5 | Controller board access door |
6 | 100‑sheet multipurpose feeder |
7 | Standard 550‑sheet tray |
8 | Optional 250‑ or 550‑sheet trays |
