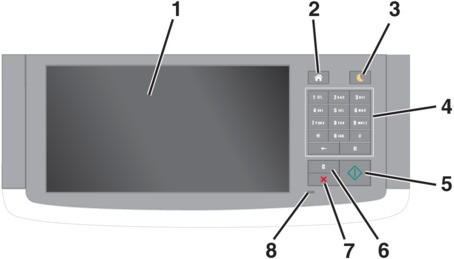

Using the printer control panel

	Use the	To
1	Display	View the printer status and messages. Set up and operate the printer.
2	Home button	Go to the home screen.
3	Sleep button	Enable Sleep mode or Hibernate mode. Do the following to wake the printer from Sleep mode: Touch the screen or press any hard button. Open a door or cover. Send a print job from the computer. Perform a power‑on reset (POR) with the main power switch. Attach a device to the USB port on the printer.
4	Keypad	Enter numbers, letters, or symbols.
5	Start button	Start a job, depending on which mode is selected.
6	Clear all / Reset button	Reset the default settings of a function, such as copying, faxing, or scanning.
7	Stop or Cancel button	Stop all printer activity.
8	Indicator light	Check the status of the printer.

1

Display

View the printer status and messages.

Set up and operate the printer.

2

Home button

Go to the home screen.

3

Sleep button

Enable Sleep mode or Hibernate mode.

Do the following to wake the printer from Sleep mode:

Touch the screen or press any hard button.

Open a door or cover.

Send a print job from the computer.

Perform a power‑on reset (POR) with the main power switch.

Attach a device to the USB port on the printer.

4

Keypad

Enter numbers, letters, or symbols.

5

Start button

Start a job, depending on which mode is selected.

6

Clear all / Reset button

Reset the default settings of a function, such as copying, faxing, or scanning.

7

Stop or Cancel button

Stop all printer activity.

8

Indicator light

Check the status of the printer.
