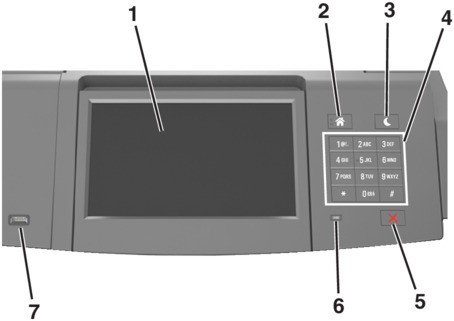

Using the printer control panel

	Use the	To
1	Display	View the status of the printer. Set up and operate the printer.
2	Home button	Go to the home screen.
3	Sleep button	Enable Sleep mode or Hibernate mode. Do the following to wake the printer from Sleep mode: Press and release the Sleep button. Touch the screen or press any hard button. Open a tray, cover, or door. Send a print job from the computer. Perform a power‑on reset with the main power switch. Attach a device to a USB port.
4	Keypad	Enter numbers, letters, or symbols on the printer.
5	Stop or Cancel button	Stop all printer activity.
6	Indicator light	Check the status of the printer.
7	USB port	Connect a USB Bluetooth adapter or a flash drive to the printer. Only the front USB port supports flash drives.

1

Display

View the status of the printer.

Set up and operate the printer.

2

Home button

Go to the home screen.

3

Sleep button

Enable Sleep mode or Hibernate mode.

Do the following to wake the printer from Sleep mode:

Press and release the Sleep button.

Touch the screen or press any hard button.

Open a tray, cover, or door.

Send a print job from the computer.

Perform a power‑on reset with the main power switch.

Attach a device to a USB port.

4

Keypad

Enter numbers, letters, or symbols on the printer.

5

Stop or Cancel button

Stop all printer activity.

6

Indicator light

Check the status of the printer.

7

USB port

Connect a USB Bluetooth adapter or a flash drive to the printer.

Only the front USB port supports flash drives.
