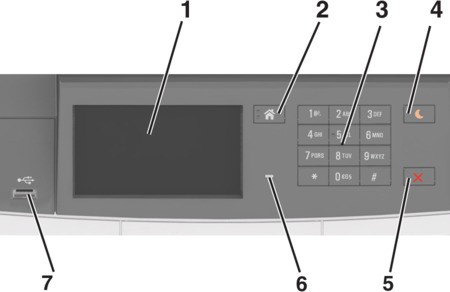

Using the printer control panel

	Use the	To
1	Display	Show the status of the printer. Set up and operate the printer.
2	Home button	Go to the home screen.
3	Keypad	Enter numbers, letters, or symbols on the printer.
4	Sleep button	Enable Sleep mode or Hibernate mode. Pressing any hard button, touching the printer control panel, attaching a device to a USB port, sending a print job, or performing a power-on reset with the main power switch wakes the printer from Sleep mode. Pressing the Sleep button or the power switch causes the printer to wake from Hibernate Mode.
5	Stop or Cancel button	Stop all printer activity.
6	Indicator light	Check the status of the printer.
7	USB port	Connect a USB a flash drive to the printer. Only the front USB port supports flash drives.

1

Display

Show the status of the printer.

Set up and operate the printer.

2

Home button

Go to the home screen.

3

Keypad

Enter numbers, letters, or symbols on the printer.

4

Sleep button

Enable Sleep mode or Hibernate mode.

Pressing any hard button, touching the printer control panel, attaching a device to a USB port, sending a print job, or performing a power-on reset with the main power switch wakes the printer from Sleep mode.

Pressing the Sleep button or the power switch causes the printer to wake from Hibernate Mode.

5

Stop or Cancel button

Stop all printer activity.

6

Indicator light

Check the status of the printer.

7

USB port

Connect a USB a flash drive to the printer.

Only the front USB port supports flash drives.
