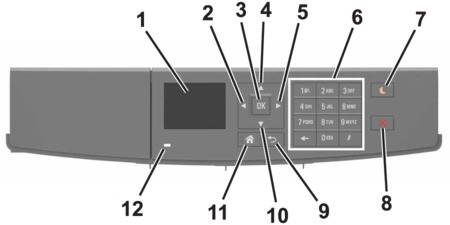

Using the control panel

	Use the	To
1	Display	View the printer status and messages. Set up and operate the printer.
2	Left arrow button	Scroll to the left.
3	Select button	Select menu options. Save settings.
4	Up arrow button	Scroll up.
5	Right arrow button	Scroll to the right.
6	Keypad	Enter numbers, letters, or symbols.
7	Sleep button	Enable Sleep mode or Hibernate mode. The following actions wake the printer from Sleep mode: Pressing any hard button Sending a print job from the computer Performing a power‑on reset using the main power switch The following actions wake the printer from Hibernate mode: Pressing the Sleep button until the printer wakes Performing a power‑on reset using the main power switch
8	Stop or cancel button	Stop all printer activities.
9	Back button	Return to the previous screen.
10	Down arrow button	Scroll down.
11	Home button	Go to the home screen.
12	Indicator light	Check the status of the printer.

1

Display

View the printer status and messages.

Set up and operate the printer.

2

Left arrow button

Scroll to the left.

3

Select button

Select menu options.

Save settings.

4

Up arrow button

Scroll up.

5

Right arrow button

Scroll to the right.

6

Keypad

Enter numbers, letters, or symbols.

7

Sleep button

Enable Sleep mode or Hibernate mode.

The following actions wake the printer from Sleep mode:

Pressing any hard button

Sending a print job from the computer

Performing a power‑on reset using the main power switch

The following actions wake the printer from Hibernate mode:

Pressing the Sleep button until the printer wakes

Performing a power‑on reset using the main power switch

8

Stop or cancel button

Stop all printer activities.

9

Back button

Return to the previous screen.

10

Down arrow button

Scroll down.

11

Home button

Go to the home screen.

12

Indicator light

Check the status of the printer.
