Overview

Solution

Open the
front door
as seen here.
Rotate the release lever
counter-clockwise
to open the cover. Click here for an illustration.
Lower the cover as seen here.
Potential Damage —
To avoid overexposing the
photoconductor unit
, do
not
leave the door open for more than
ten minutes
.
Grasp the handle of the
photoconductor unit
and pull it out of the machine. Click here for an illustration.
Pull out the
photoconductor unit
without touching the
blue
, shiny drum.
Unpack the replacement
photoconductor unit
.
In order to avoid contamination of the
photoconductor unit
, do
not
touch the
blue
, shiny surface of the drum.
Align and insert the end of
photoconductor unit
. Click here for an illustration.
Remove the
tape
from the top of the
photoconductor unit
as seen here.
Do
not
use a sharp object to remove the
tape
because it may damage the
photoconductor unit
.
Push the tab forward to insert the
photoconductor unit
. Click here for an illustration.
Push the
photoconductor unit
until it
clicks
into place as seen here.

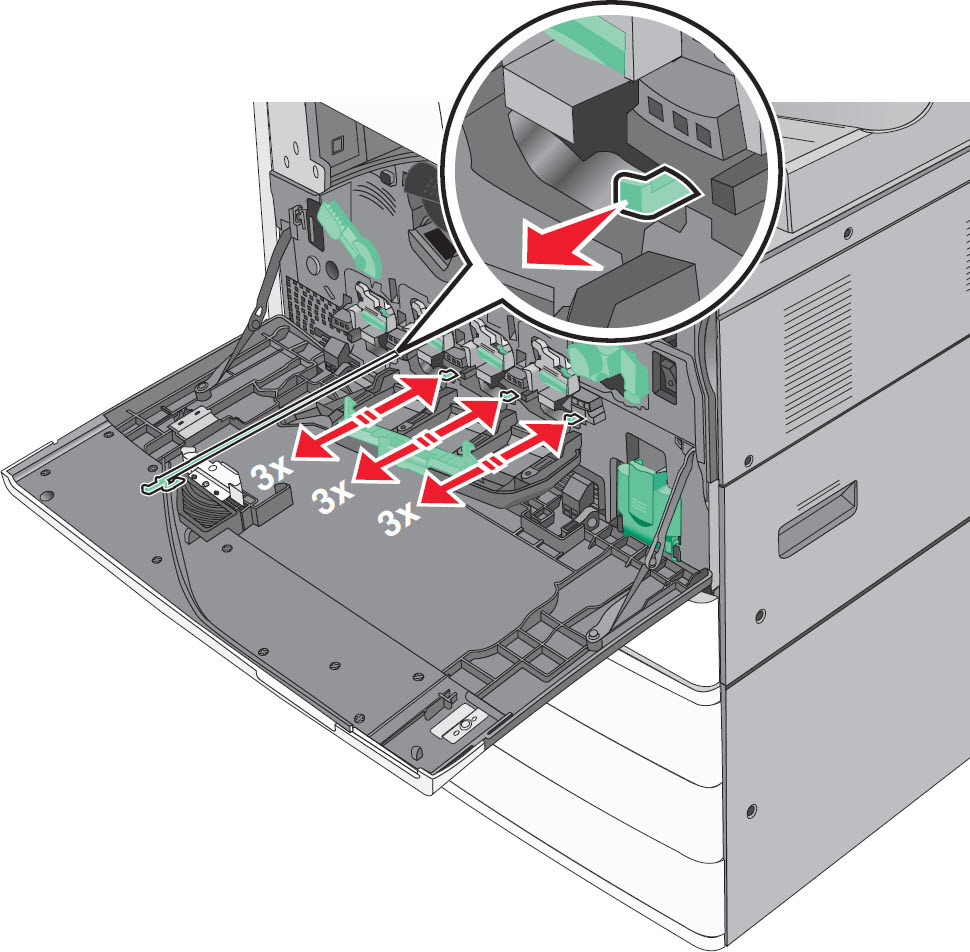

Gently pull the
printhead wipers
out until they stop, and then slowly slide them back into place. Click here for an illustration.
Close the cover as seen here.
Rotate the release lever
clockwise
to lock the cover. Click here for an illustration.
Close the
front door
as seen here.
